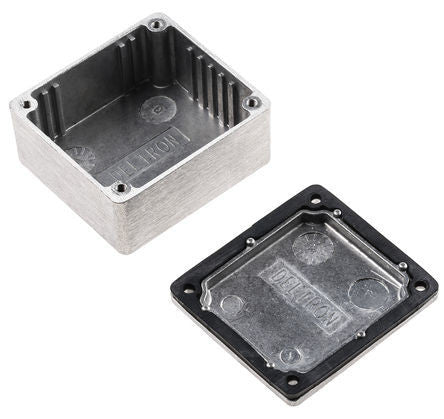

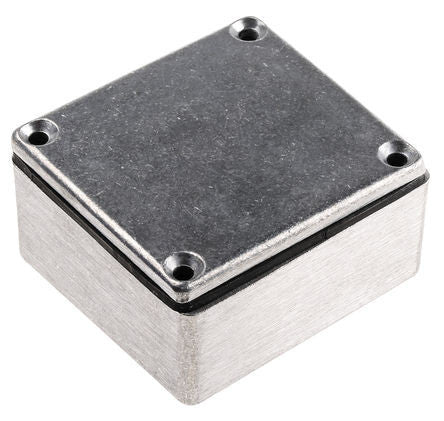

IP68 Aluminium Enclosure Shielded 60 x 55 x 31mm - SMEDEL480-C150

The SMEDEL series diecast aluminium enclosures are rated at IP68 as defined in the IEC standard 60529. IP68 is the highest grade of protection defined in this standard. These boxes can handle depths of up to 5 metres for 1 hour and are certified to BS EN60529 1992. Making these enclosures ideal for systems exposed to demanding environmental conditions in marine, industrial, food preparation, transportation, leisure and other applications. Shielded (EMC) version available.

Modifications and Customizations:
SM excels at modifying and customizing products to your specification
Contact us for Other Sizes and Custom solutions

Plain diecast aluminium enclosure
PCB mounting guides on selected models
Hard neoprene rubber seal with self adhesive backing
Lid has seal location lugs to aid fitment and sealing
Lid secured by M3.5 x 12 stainless steel fixing screws
Minimum seal thickness 3.0mm, minimum seal frame width 4.0mm
Minimum enclosure wall / lid thickness 1.5mm

Note
Shielded (EMC) version has a carbon loaded silicone seal.

Standards
BS EN 60529: 1992

Natural Finish Die Cast Aluminium Boxes

Body Material: Die Cast Aluminium

External Dimensions: L: 60 x W: 55 x H: 31mm
IP Rating: IP66, IP67, IP68
Colour: Natural
Shielded: Yes
