Continuous Hinge with 3-Point Latch, Type 4X - Hoffman

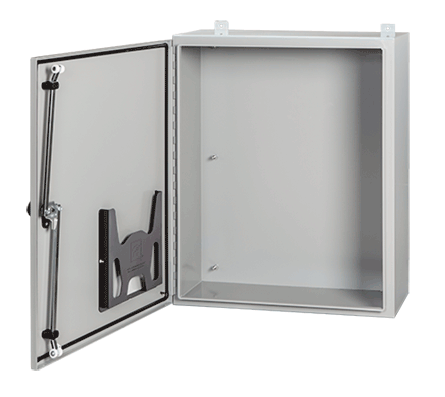

These enclosures feature Hoffman's exclusive POWERGLIDE Handle with 3-point latching, ideal for indoor or outdoor applications that require corrosion protection, convenient access, and padlocking security.
Applications: These enclosures feature Hoffman's exclusive POWERGLIDE Handle with 3-point latching, ideal for indoor or outdoor applications that require corrosion protection, convenient access, and padlocking security.
Specifications:
14 gauge Type 304 or 316L stainless steel bodies and doors
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Rolled lip around three sides of door
Internal 3-point latch and Type 316L stainless steel padlocking POWERGLIDE Handle
Remove door by pulling stainless steel continuous hinge pin
Data pocket is high-impact thermoplastic
Collar studs provided for mounting optional panels
Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
Bonding provision on door; grounding stud on body
Finish:
Door, sides, top and bottom have smooth #4 brushed finish. Handle is electropolished.
Accessories:
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Steel and Stainless Steel Window Kits
H2OMIT Vent Drains, Type 4X
H2OMIT Thermoelectric Dehumidifier
Modifications and Customizations:
Contact us for Data sheets, Pricing and Availability
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
IEC 60529, IP66
Meets NEMA Type 3RX requirements
| Catalog Number | Height (A) in. | Width (B) in. | Depth (C) in. |
|---|---|---|---|
| A24H2006SSLP3PT | 24.0 | 20.0 | 6.0 |
| A24H2006SS6LP3PT | 24.0 | 20.0 | 6.0 |
| A24H2008SSLP3PT | 24.0 | 20.0 | 8.0 |
| A24H2008SS6LP3PT | 24.0 | 20.0 | 8.0 |
| A24H2408SSLP3PT | 24.0 | 24.0 | 8.0 |
| A24H2408SS6LP3PT | 24.0 | 24.0 | 8.0 |
| A30H2408SSLP3PT | 30.0 | 24.0 | 8.0 |
| A30H2408SS6LP3PT | 30.0 | 24.0 | 8.0 |
| A30H3008SSLP3PT | 30.0 | 30.0 | 8.0 |
| A30H3008SS6LP3PT | 30.0 | 30.0 | 8.0 |
| A36H2408SSLP3PT | 36.0 | 24.0 | 8.0 |
| A36H2408SS6LP3PT | 36.0 | 24.0 | 8.0 |
| A36H3008SSLP3PT | 36.0 | 30.0 | 8.0 |
| A36H3008SS6LP3PT | 36.0 | 30.0 | 8.0 |
| A48H3608SSLP3PT | 48.0 | 36.0 | 8.0 |
| A48H3608SS6LP3PT | 48.0 | 36.0 | 8.0 |
| A24H2010SSLP3PT | 24.0 | 20.0 | 10.0 |
| A24H2010SS6LP3PT | 24.0 | 20.0 | 10.0 |
| A36H3010SSLP3PT | 36.0 | 30.0 | 10.0 |
| A36H3010SS6LP3PT | 36.0 | 30.0 | 10.0 |
| A42H3010SSLP3PT | 42.0 | 30.0 | 10.0 |
| A48H3610SSLP3PT | 48.0 | 36.0 | 10.0 |
| A48H3610SS6LP3PT | 48.0 | 36.0 | 10.0 |
| A24H2412SSLP3PT | 24.0 | 24.0 | 12.0 |
| A24H2412SS6LP3PT | 24.0 | 24.0 | 12.0 |
| A30H2412SSLP3PT | 30.0 | 24.0 | 12.0 |
| A30H2412SS6LP3PT | 30.0 | 24.0 | 12.0 |
| A36H3012SSLP3PT | 36.0 | 30.0 | 12.0 |
| A36H3012SS6LP3PT | 36.0 | 30.0 | 12.0 |
| A36H3612SSLP3PT | 36.0 | 36.0 | 12.0 |
| A36H3612SS6LP3PT | 36.0 | 36.0 | 12.0 |
| A42H3612SSLP3PT | 42.0 | 36.0 | 12.0 |
| A48H3612SSLP3PT | 48.0 | 36.0 | 12.0 |
| A48H3612SS6LP3PT | 48.0 | 36.0 | 12.0 |
| A60H3612SSLP3PT | 60.0 | 36.0 | 12.0 |
| A60H3612SS6LP3PT | 60.0 | 36.0 | 12.0 |
| A48H3616SSLP3PT | 48.0 | 36.0 | 16.0 |
| A48H3616SS6LP3PT | 48.0 | 36.0 | 16.0 |
| A60H3616SSLP3PT | 60.0 | 36.0 | 16.0 |
| A60H3616SS6LP3PT | 60.0 | 36.0 | 16.0 |
Please give us a call to discuss your requirements.
