Continuous-Hinge with Clamps, Type 4X - Hoffman

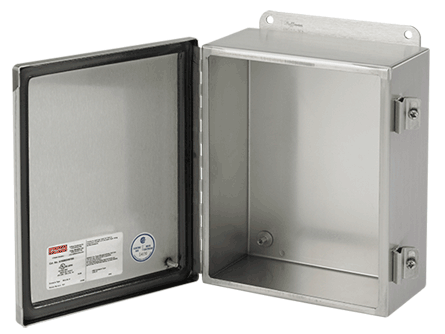

Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless steel screw-down clamps for a reliable seal that protects components from corrosive environments.
Applications: Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless steel screw-down clamps for a reliable seal that protects components from corrosive environments.
Specifications:
16 and 14 gauge Type 304 or 316L stainless steel
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Stainless steel screws and clamps
Pull stainless steel continuous hinge pin to remove door
Weldnuts provided for mounting optional panels and terminal block kits
Bonding provision on door and body
Finish:
Cover and sides of body have smooth #4 brushed finish.
Accessories:
Fast-Operating Clamp-Cover Junction Box Clamp
Lock Kit for Clamp Cover Junction Boxes
Panels for Junction Boxes
Terminal Block Kit Assembly for Junction Boxes Overview
Modifications and Customizations:
Contact us for Data sheets, Pricing and Availability
UL 50, 50E Listed; Type 3R, 4, 4X, 12; File No. E27567
CSA File No. 42184: Type 4, 4X, 12
IEC 60529, IP66 Meets NEMA Type 3RX requirements
| Catalog Number | Height (A) in. | Width (B) in. | Depth (C) in. |
|---|---|---|---|
| A1008CHNFSS | 10.0 | 8.0 | 4.0 |
| A1008CHNFSS6 | 10.0 | 8.0 | 4.0 |
| A12106CHNFSS | 12.0 | 10.0 | 6.0 |
| A12106CHNFSS6 | 12.0 | 10.0 | 6.0 |
| A1212CHNFSS | 12.0 | 12.0 | 6.0 |
| A1212CHNFSS6 | 12.0 | 12.0 | 6.0 |
| A1412CHNFSS | 14.0 | 12.0 | 6.0 |
| A1412CHNFSS6 | 14.0 | 12.0 | 6.0 |
| A1614CHNFSS | 16.0 | 14.0 | 6.0 |
| A1614CHNFSS6 | 16.0 | 14.0 | 6.0 |
| A6044CHNFSS | 6.0 | 4.0 | 4.0 |
| A6044CHNFSS6 | 6.0 | 4.0 | 4.0 |
| A606CHNFSS | 6.0 | 6.0 | 4.0 |
| A606CHNFSS6 | 6.0 | 6.0 | 4.0 |
| A8064CHNFSS | 8.0 | 6.0 | 4.0 |
| A8064CHNFSS6 | 8.0 | 6.0 | 4.0 |
Please give us a call to discuss your requirements.
