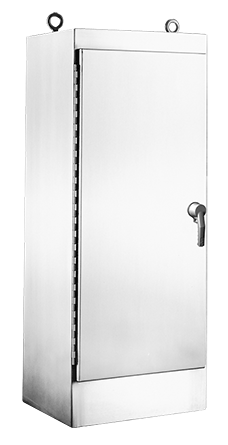

Free-Stand Single and Dual Access with 3-Point Latches, Type 4X - Hoffman
Applications:
Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries. Four styles are available to provide maximum flexibility:
Application:
One-Door Single-Access Enclosures (single door on front)
One-Door Dual-Access Enclosures (single door on front and rear)
Two-Door Single-Access Enclosures (doors close on a removeable centerpost)
Two-Door Dual-Access Enclosures (doors close on a removea
Specifications:
12 gauge Type 304 stainless steel
Seams continuously welded and ground smooth; no holes or knockouts
Two-door enclosures provided with a removeable centerpost for easy panel installation
Heavy-duty lifting eyes are Type 316L stainless steel
Heavy-duty three-point latching mechanism operated by Type 316L stainless steel POWERGLIDE™ padlocking handle
Seemless foam-in-place gasket assures a water-tight and dust-tight seal
Body flange trough collar excludes liquids and contaminants
Heavy-gauge continuous hinges support each door
High-impact thermoplastic data pocket provided with each enclosure
Mounting channels welded horizontally to interior body sides at top, bottom and center
Optional panels and rack mounting angles can be mounted anywhere along channels
Bonding provision on door; grounding stud on body
Accessory mounting channel provided in enclosure top
Finish:
Enclosures are unpainted. Cover, sides, top and bottom have smooth #4 brushed finish. Optional steel panels, swing-out panels, side-mounted panels, rack-mounting frames, heavy-duty panel supports and center panel supports are white. Optional full, half and side-mounted conductive panels are available.
Accessories:
Caster Kit
Clamping Nut Package
Floor Stand Kit, Stainless Steel
Center Panel Supports
Panels for Free-Stand Type 4, 4X and 12 Single- and Dual-Access One-Door Enclosures with Mounting Channel
Panels for Free-Stand Type 4, 4X and 12 Single- and Dual-Access Two-Door Enclosures with Mounting Channel
Contact us for Data sheets, Pricing and Availability
| Catalog Number | Height (A) in. | Width (B) in. | Depth (C) in. |
|---|---|---|---|
| A602418SSFSN4 | 60.06 | 24.06 | 18.06 |
| A603624SSFSN4 | 60.06 | 36.06 | 24.06 |
| A604818SSFSDN4 | 60.06 | 48.06 | 18.06 |
| A722418SSFSN4 | 72.06 | 24.06 | 18.06 |
| A722424SSFSDAN4 | 72.06 | 24.06 | 24.06 |
| A722424SSFSN4 | 72.06 | 24.06 | 24.06 |
| A722430SSFSDAN4 | 72.06 | 24.06 | 30.06 |
| A722436SSFSDAN4 | 72.06 | 24.06 | 36.06 |
| A723018SSFSN4 | 72.06 | 30.06 | 18.06 |
| A723024SSFSDAN4 | 72.06 | 30.06 | 24.06 |
| A723024SSFSN4 | 72.06 | 30.06 | 24.06 |
| A723618SSFSN4 | 72.06 | 36.06 | 18.06 |
| A723624SSFSDAN4 | 72.06 | 36.06 | 24.06 |
| A723624SSFSN4 | 72.06 | 36.06 | 24.06 |
| A723630SSFSN4 | 72.06 | 36.06 | 30.06 |
| A723636SSFSDAN4 | 72.06 | 36.06 | 36.06 |
| A723636SSFSN4 | 72.06 | 36.06 | 36.06 |
| A724818SSFSDN4 | 72.06 | 48.06 | 18.06 |
| A724824SSFSDADN4 | 72.06 | 48.06 | 24.06 |
| A724824SSFSDN4 | 72.06 | 48.06 | 24.06 |
| A726018SSFSDN4 | 72.06 | 60.06 | 18.06 |
| A726024SSFSDADN4 | 72.06 | 60.06 | 24.06 |
| A726024SSFSDN4 | 72.06 | 60.06 | 24.06 |
| A726036SSFSDADN4 | 72.06 | 60.06 | 36.06 |
| A726036SSFSDN4 | 72.06 | 60.06 | 36.06 |
| A727218SSFSDN4 | 72.06 | 72.06 | 18.06 |
| A727224SSFSDADN4 | 72.06 | 72.06 | 24.06 |
| A727224SSFSDN4 | 72.06 | 72.06 | 24.06 |
| A902420SSFSN4 | 90.06 | 24.06 | 20.06 |
| A903620SSFSN4 | 90.06 | 36.06 | 20.06 |
| A903624SSFSDAN4 | 90.06 | 36.06 | 24.06 |
| A903624SSFSN4 | 90.06 | 36.06 | 24.06 |
| A903636SSFSDAN4 | 90.06 | 36.06 | 36.06 |
| A903636SSFSN4 | 90.06 | 36.06 | 36.06 |
| A904820SSFSDN4 | 90.06 | 48.06 | 20.06 |
| A907220SSFSDN4 | 90.06 | 72.06 | 20.06 |
| A907224SSFSDADN4 | 90.06 | 72.06 | 24.06 |
| A907224SSFSDN4 | 90.06 | 72.06 | 24.06 |
| A907236SSFSDN4 | 90.06 | 72.06 | 36.06 |
Please give us a call to discuss your requirements.
