RAYCHEM RPG EX RJ13 IP68 Enclosures Exd 160 x 260 x 90mm

IP64, IP65, IP66, IP67, IP68, IP69K Enclosures

Size (Width x Length x Height) : For more sizes see below table

Please Contact us for Pricing and Availability

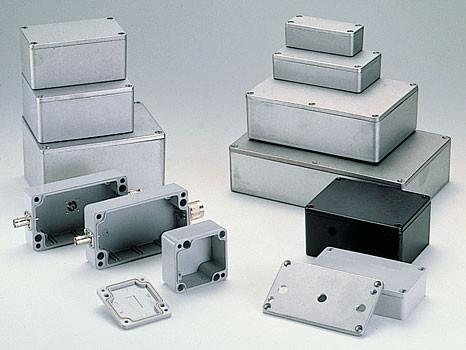

Die-cast Aluminum Enclosure
Impact Resistance over 7 Nm As per EN50014
Painted and Unpainted version
Operating Temperature (-50C to +135C) with Neoprene / Silicone gaskets
Corrosion Resistant
ROHS Compliant
100% free from radioactive content
Customize or modify to suit specified applications
Can be drilled and tapped to accommodate most thread forms
Certified: UL, IECEx, Ex

Material: AI Si 12, as per DIN EN1706
Components: Fastening thread M4 / M6 in the enclosure bottom
Gasket: Neoprene (-40C to +100C) / Silicone gasket (-50C to +135C)
Lid Screw: Stainless Steel 1.43 (A2) captive
Surface: Painted (standard) / Non Painted (please request)
Sizes: For more sizes see below table

Standard Colours:
RAL 7001, 7031, 7032, 7035, 7038, Black RAL 9004, White RAL 9010

Protection Class (as per IEC 60529):
IP64, IP65, IP66, IP67, IP68, IP69K

Modifications and Customizations:
SME excels at modifying and customizing products to your specifications.
Contact us for Data sheets, Pricing and Availability

Dimensions
