Mil-Spec Round Screening Braid - QQB575R36T109 - AA59569R36T0109 - Size 7/64" - 30M

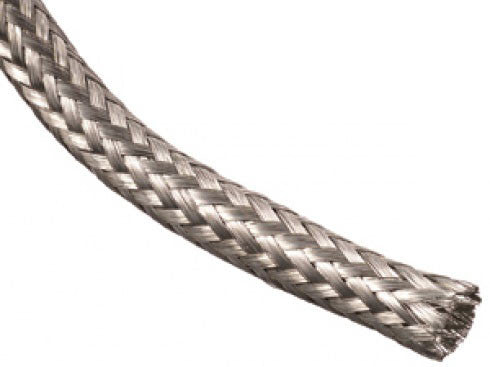

Mil-Spec Round Screening Braid
AA59569 Tubular Braid (formerly QQ-B-575) Round Tinned Copper Braid
Contact us for Other Sizes and Qty Discount Pricing.
i.e. AA59569 R36T0031 (Old Mil-Spec: QQB575 R36T0031)
R = Round (replace with F for flat)
T = Tinned Copper (replace with S for Silver & N for Nickel)
Tubular braids shall be designed to provide a minimum 90% coverage, except for 0.078 inch and smaller braids, which will have a 70% minimum coverage.
Mil-Spec AA59569 - QQB575 Round & Flat Screening / Tin Copper Braid
Contact us for Price and Availability.
| Old Mil Part Number QQB575 | New Mil Part Number AA59569 |
Strand Wire Size (AWG) |
Tubular ID Inches (mm) |
| QQB575R36T031 | AA59569R36T0031 | 36 | .031(.787) |
| QQB575R36T062 | AA59569R36T0062 | 36 | .062(1.575) |
| QQB575R34T062 | AA59569R34T0062 | 34 | .062(1.575) |
| QQB575R32T062 | AA59569R32T0062 | 32 | .062(1.575) |
| QQB575R36T078 | AA59569R36T0078 | 36 | .078(1.981) |
| QQB575R36T109 | AA59569R36T0109 | 36 | .109(2.768) |
| QQB575R34T109 | AA59569R34T0109 | 34 | .109(2.768) |
| QQB575R32T109 | AA59569R32T0109 | 32 | .109(2.768) |
| QQB575R36T125 | AA59569R36T0125 | 36 | .125(3.175) |
| QQB575R34T125 | AA59569R34T0125 | 34 | .125(3.175) |
| QQB575R32T125 | AA59569R32T0125 | 32 | .125(3.175) |
| QQB575R36T156 | AA59569R36T0156 | 36 | .156(3.962) |
| QQB575R36T171 | AA59569R36T0171 | 36 | .171(4.343) |
| QQB575R34T171 | AA59569R34T0171 | 34 | .171(4.343) |
| QQB575R32T171 | AA59569R32T0171 | 32 | .171(4.343) |
| QQB575R36T203 | AA59569R36T0203 | 36 | .203(5.156) |
| QQB575R34T203 | AA59569R34T0203 | 34 | .203(5.156) |
| QQB575R32T203 | AA59569R32T0203 | 32 | .203(5.156) |
| QQB575R36T250 | AA59569R36T0250 | 36 | .250(6.35) |
| QQB575R30T281 | AA59569R30T0281 | 30 | .281(7.137) |
| QQB575R36T375 | AA59569R36T0375 | 36 | .375(9.525) |
| QQB575R34T375 | AA59569R34T0375 | 34 | .375(9.525) |
| QQB575R32T375 | AA59569R32T0375 | 32 | .375(9.525) |
| QQB575R30T375 | AA59569R30T0375 | 30 | .375(9.525) |
| QQB575R30T437 | AA59569R30T0437 | 30 | .437(11.01) |
| QQB575R36T500 | AA59569R36T0500 | 36 | .500(12.7) |
| QQB575R34T500 | AA59569R34T0500 | 34 | .500(12.7) |
| QQB575R32T500 | AA59569R32T0500 | 32 | .500(12.7) |
| QQB575R30T500 | AA59569R30T0500 | 30 | .500(12.7) |
| QQB575R30T562 | AA59569R30T0562 | 30 | .562(14.275) |
| QQB575R30T656 | AA59569R30T0656 | 30 | .656(16.662) |
| QQB575R36T781 | AA59569R36T0781 | 36 | .781(19.837) |
| QQB575R34T781 | AA59569R34T0781 | 34 | .781(19.837) |
| QQB575R32T781 | AA59569R32T0781 | 32 | .781(19.837) |
| QQB575R30T875 | AA59569R30T0875 | 30 | .875(22.225) |
| QQB575R30T1000 | AA59569R30T1000 | 30 | 1.000(25.4) |
| QQB575R30T1125 | AA59569R30T1125 | 30 | 1.125(28.575) |
| QQB575R30T1375 | AA59569R30T1375 | 30 | 1.375(34.925) |
| QQB575R30T1500 | AA59569R30T1500 | 30 | 1.5(38.1) |
| QQB575R30T2000 | AA59569R30T2000 | 30 | 2.0(50.8) |
| Old Mil Part Number QQB575 | New Mil Part Number AA59569 |
Strand Wire Size (AWG) |
ID Inches (mm) |
| QQB575F36T031 | AA59569F36T0031 | 36 | .031(.787) |
| QQB575F36T062 | AA59569F36T0062 | 36 | .062(1.575) |
| QQB575F34T062 | AA59569F34T0062 | 34 | .062(1.575) |
| QQB575F32T062 | AA59569F32T0062 | 32 | .062(1.575) |
| QQB575F36T078 | AA59569F36T0078 | 36 | .078(1.981) |
| QQB575F36T109 | AA59569F36T0109 | 36 | .109(2.768) |
| QQB575F34T109 | AA59569F34T0109 | 34 | .109(2.768) |
| QQB575F32T109 | AA59569F32T0109 | 32 | .109(2.768) |
| QQB575F36T125 | AA59569F36T0125 | 36 | .125(3.175) |
| QQB575F34T125 | AA59569F34T0125 | 34 | .125(3.175) |
| QQB575F32T125 | AA59569F32T0125 | 32 | .125(3.175) |
| QQB575F36T156 | AA59569F36T0156 | 36 | .156(3.962) |
| QQB575F36T171 | AA59569F36T0171 | 36 | .171(4.343) |
| QQB575F34T171 | AA59569F34T0171 | 34 | .171(4.343) |
| QQB575F32T171 | AA59569F32T0171 | 32 | .171(4.343) |
| QQB575F36T203 | AA59569F36T0203 | 36 | .203(5.156) |
| QQB575F34T203 | AA59569F34T0203 | 34 | .203(5.156) |
| QQB575F32T203 | AA59569F32T0203 | 32 | .203(5.156) |
| QQB575F36T250 | AA59569F36T0250 | 36 | .250(6.35) |
| QQB575F30T281 | AA59569F30T0281 | 30 | .281(7.137) |
| QQB575F36T375 | AA59569F36T0375 | 36 | .375(9.525) |
| QQB575F34T375 | AA59569F34T0375 | 34 | .375(9.525) |
| QQB575F32T375 | AA59569F32T0375 | 32 | .375(9.525) |
| QQB575F30T375 | AA59569F30T0375 | 30 | .375(9.525) |
| QQB575F30T437 | AA59569F30T0437 | 30 | .437(11.01) |
| QQB575F36T500 | AA59569F36T0500 | 36 | .500(12.7) |
| QQB575F34T500 | AA59569F34T0500 | 34 | .500(12.7) |
| QQB575F32T500 | AA59569F32T0500 | 32 | .500(12.7) |
| QQB575F30T500 | AA59569F30T0500 | 30 | .500(12.7) |
| QQB575F30T562 | AA59569F30T0562 | 30 | .562(14.275) |
| QQB575F30T656 | AA59569F30T0656 | 30 | .656(16.662) |
| QQB575F36T781 | AA59569F36T0781 | 36 | .781(19.837) |
| QQB575F34T781 | AA59569F34T0781 | 34 | .781(19.837) |
| QQB575F32T781 | AA59569F32T0781 | 32 | .781(19.837) |
| QQB575F30T875 | AA59569F30T0875 | 30 | .875(22.225) |
| QQB575F30T1000 | AA59569F30T1000 | 30 | 1.000(25.4) |
| QQB575F30T1125 | AA59569F30T1125 | 30 | 1.125(28.575) |
| QQB575F30T1375 | AA59569F30T1375 | 30 | 1.375(34.925) |
| QQB575F30T1500 | AA59569F30T1500 | 30 | 1.5(38.1) |
| QQB575F30T2000 | AA59569F30T2000 | 30 | 2.0(50.8) |
Contact us for Price and Availability.
